Specification Sheet

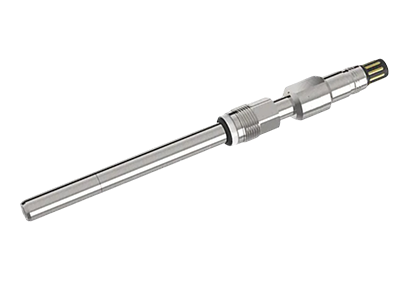

DO Sensor | Parameter | Dissolved Oxygen |
Body Type | ø12mm PG13.5 / ø25mm Ingold | |
Technology | Electrochemical - Polarographic Analogue Sensor | |
Range | 0-300% Saturation | |
Process Pressure | up to 10 Bar | |
Process Temperature | up to 135 °C | |
Body MOC | 316L Stainless Steel | |
O-Ring Wetted Material | Silicone, EPDM (FDA and USP Class VI positive listed) | |
Membrane Material | Silicone/PTFE (Reinforced with Steel Mesh) | |
Temperature Compensation | PT100 / PT1000 | |
Surface Roughness | Ra Value < 0.15 | |
Length | 120mm / 220mm / 320mm / 420mm | |
120mm / 220mm / 320mm / 420mm | PG 13.5 Rotating cap / G1-1/4" Ingold | |
Special | Steam Sterilizable | |
Application | Fermenters, Bio-reactors | |

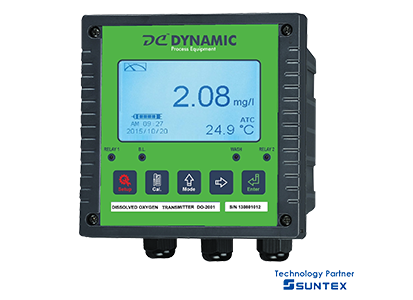

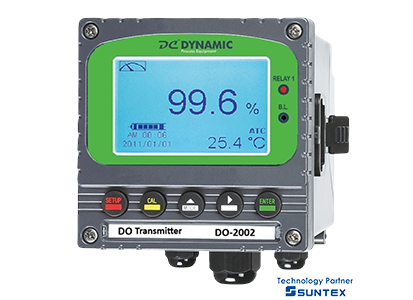

DO Controller | Type | Dissolved Oxygen Controller |
Body | Moulded PC/ABS | |
Ingress Protection | IP 66 | |
Display | Dual Display LED Backlit | |
Analogue Output | 4-20 mA DC, galvanically isolated output | |
Relay Output | 2 Output Relays | |
Temperature Input | Automatic Compensation PT-100/PT-1000 | |
Power Input | 24V DC / 230V AC | |
Mounting | Field and Panel Mounted |
