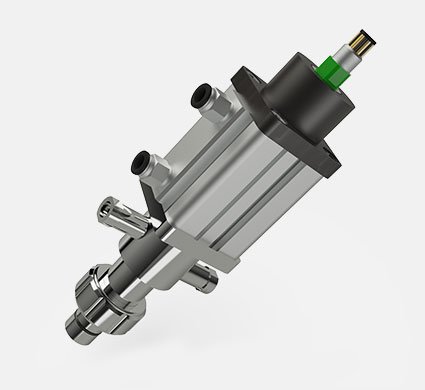

420M

About Product

  • Available in various material such as SS 316L, SS 904L, Titanium, Hastelloy C22 for wetted parts.
  • Available in various sealing material such as EPDM, VITON, KALREZ.
  • Integrated position feedback (Optional)
  • Various process connections: Flange size ANSI 1.5” and above, Triclover, G1-1/4” Ingold, Dairy Fitting
  • Immersion length 40mm extendable up to 60mm for Ingold fitting
  • Stroke length 40mm

Unique Features

  • Compact design suitable for Bio-pharma, food and dairy industries.
  • Fits 225mm long electrodes which are more readily available and durable.
  • Longer cleaning path for improved CIP-SIP results.
  • Short 40mm stroke length for less wear & tear.
  • Scrap & Seal assembly for durability of the sealing material.
Know More Know More

Benefits

  • Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
  • Improved accuracy, reliability and life of process sensors such as pH Electrodes.
  • Ease of operation and maintenance of measurement point.
  • Plug & Use Modular design for ease of installation and maintenance.
  • Pneumatic assembly for remote operation
  • Usable in hazardous areas and awkward positions.
  • Can be fully automated with SmartControl Auto control panel.
420-220M-P-dimensions
Specification Sheet
Model 420M
Pressure 0 to 10 Bar
Process Temperature -10 to 140 °C
Immersion Length 40 mm (up to 60 mm)
O-ring posision 28 mm (up to 48 mm)
pH/DO Sensor Specs 225mm ø12 PG13.5
Wetted Material SS316L, SS904L, C22 Hastelloy, Titanium
Seals EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection Flange ANSI 1.5" and Above, G11/4" Ingold, TriClover, Dairy Fitting
Flushing Port G1/4" Female
Surface Finish Ra Value <0.2
Operating Air Pressure 4 to 6 Bar
Limit Switch Pneumatic/Reed Switch
Application
  • Bio-Pharma
  • Food & Baverages
  • Dairy Industry
Ordering Information
SmartDip 420M _Code MOC of Wetted Parts
1 316L
2 904L
3 C22
4 Titanium
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
_code Process Connection
F1 Flange ANSI 1-1/2" #150
F2 Flange ANSI 2" #150
F3 Flange ANSI 3" #150
G Ingold G1-1/4"
T1 Triclover ISO DN25/32, DIN DN25/32
T2 Triclover ISO DN40, DIN DN40/50
D1 Dairy Fitting DN50
D2 Dairy Fitting DN60
_code Position Feedback
RD Megnetic Reed Switch
PN Pneumatic
NA Not Required
