220M

About Product

  • Available in various material such as SS 316L, SS 904L, Titanium for wetted parts.
  • Available in various sealing material such as EPDM, VITON, KALREZ.
  • Various process connections: Flange size ANSI 1.5” and above.
  • Immersion length available up to 350mm.

Unique Features

  • Ball valve for isolation in service position.
  • Fits 120mm long electrodes which are most readily available and durable.
  • In-built flushing chamber for cleaning and safe storage of the sensor.
  • Scrap & Seal assembly for durability of the sealing material.

Benefits

  • Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
  • Improved accuracy, reliability and life of process sensors such as pH Electrodes.
  • Ease of operation and maintenance of measurement point.
  • Plug & Use Modular design for ease of installation and maintenance.
  • Ergonomic manual operation with measurement position latch mechanism.

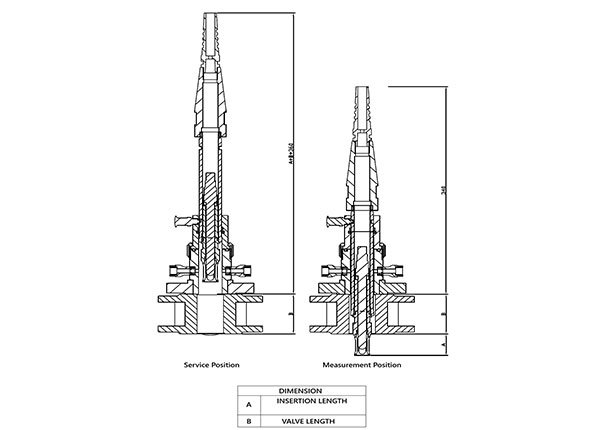

250M-dimensions
Specification Sheet
Model 250M
Pressure 0 to 10 Bar
Temperature -10 to 140 °C
Immersion Length up to 350 mm
Sensors 120mm ø12 PG13.5
Wetted Material SS316L / Titanium
Seals EPDM / FPM (Viton)
Isolation Valve Wafer Type Manual Ball Valve ANSI 1.5” (and above) PTFE Lined Ball Valve Available for Highly Corrosive Application.
Application
  • Chemical Process
  • Wastewater
  • Petrochemicals & Refinery
  • Pulp &Paper Industry
  • Power Plant
  • Battery Recycling
Download
SmartDip 250M_Datasheet
