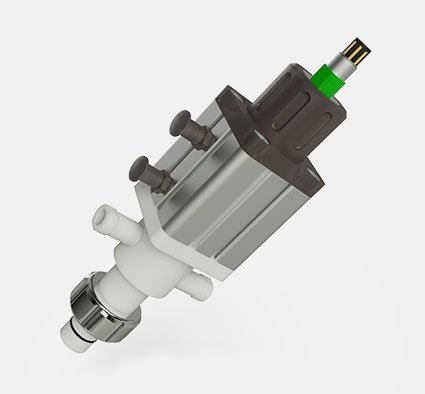

220P

About Product

  • Available in various material such as PVDF and PEEK for wetted parts.
  • Available in various sealing material such as EPDM, VITON, KALREZ.
  • Various process connections: Flange size ANSI 1.5” and above, G1-1/4” Ingold
  • Immersion length 40mm extendable up to 60mm for Ingold fitting
  • Stroke length 40mm

Unique Features

  • Compact design suitable for Bio-pharma, food and dairy industries.
  • Fits 225mm long electrodes which are more readily available and durable.
  • Longer cleaning path for improved CIP results.
  • Short 40mm stroke length for less wear & tear.
  • Scrap & Seal assembly for durability of the sealing material.

Benefits

  • Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
  • Improved accuracy, reliability and life of process sensors such as pH Electrodes.
  • Ease of operation and maintenance of measurement point.
  • Plug & Use Modular design for ease of installation and maintenance.
  • Usable in hazardous areas and awkward positions.
  • Ergonomic manual operation with two position latch mechanism.
420-220M-P-dimensions
Specification Sheet
Model 220P
Pressure 0 to 7 Bar
Temperature up to 140 °C
Immersion Length 40 mm
O-ring posision 28 mm
Sensors 225mm ø12 PG13.5
Wetted Material PVDF, PEEK
Seals EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection Flange ANSI 1.5" and Above, G11/4" Ingold, TriClover, Dairy Fitting
Flushing Port G1/4" Female
Application
  • Bio-pharma
  • Food & Baverages
  • Dairy Industry
Ordering Information
SmartDip 220P _Code MOC of Wetted Parts
6 PVDF
7 PEEK
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
_code Process Connection
F1 Flange ANSI 1-1/2" #150
F2 Flange ANSI 2" #150
F3 Flange ANSI 3" #150
G Ingold G1-1/4"
