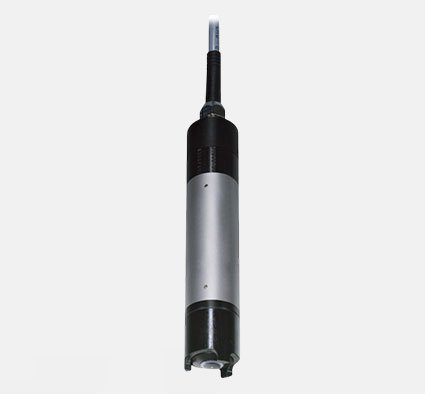

aquasense-do

Unique Features

  • Highly accurate Electrochemical - Polarographic
  • Rugged waterproof body for immersion in open tanks
  • Replaceable membrane cap for ease of maintenance
  • Integrated temperature sensor for compensation
  • Integrated 7M long Cable

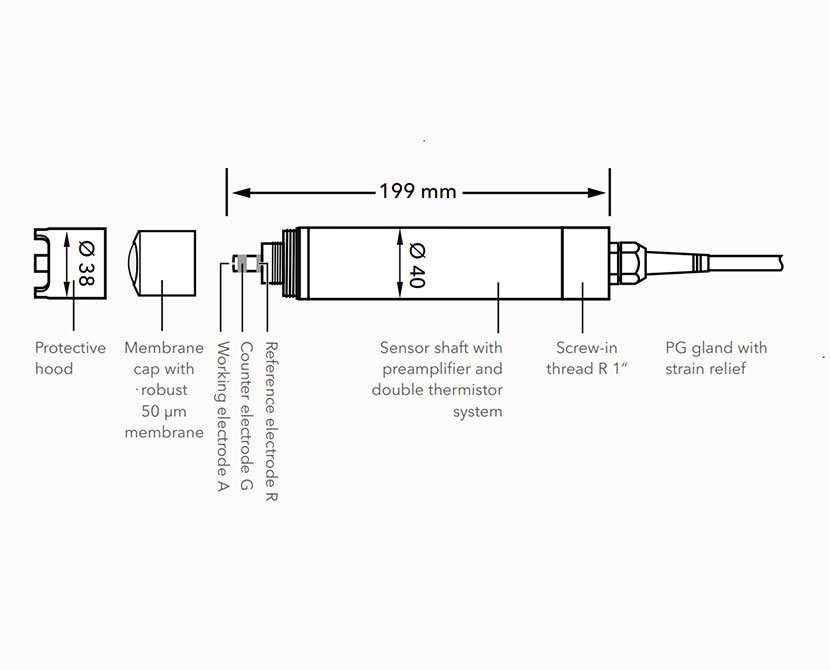

aquasense-do-dimensions
Specification Sheet
Dissolved Oxygen Sensor AquaSense DO
Application Waste water, Effluent Treatment Processes
Type Membrane style Amperometric Sensor with 3-Electrode System
Output Pre-amplified Voltage Signal
O2 Range Concentration 0.0 to 60.0 mg/l
Saturation 0 to 600%
Temperature Sensor NTC
Process Range Temperature 0 to 50 °C
Pressure 10 Bar
Cathode Electrode Gold
Anode Electrode Silver
Response Time t90 : 180 s
Min Flow Rate 0.05 m/s
Cable Connector Integrated 7M Cable
Dimensions Diameter 40 mm
Length 199 mm
Certification CE, cUL, UL
Application
  • Wastewater & Effluent Treatment
  • Aquaculture, Fish Pond
Download
AquaSense DO_Datasheet
