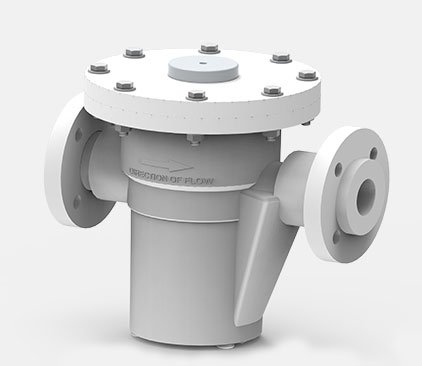

smartflow-assembly

About Product

  • Rugged moulded body made from high quality thermo-plastic PPH material
  • Suitable for harsh and corrosive liquid media
  • Process Temperature: Up to 85 °C
  • Process Pressure: Up to 5 Bar
  • Flange Size: ANSI 1.5”, 2”
  • Electrode mounting: ¾” NPT, 120mm ø12 PG 13.5 Glass sensor with SmartDip 110P

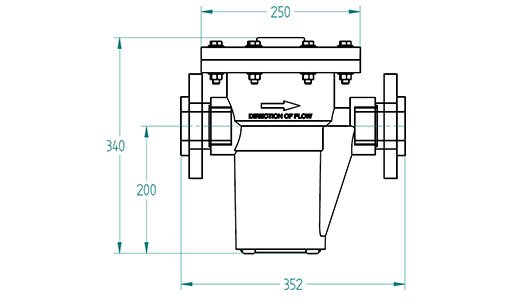

smartflow-dimensions
Specification Sheet
Model SmartFlow Assembly
Process Temperature up to 85 °C
Process Pressure up to 5 Bar
Wetted part MOC PPH
Seals EPDM (Non wetted)
Process Connection Flange ANSI 1.5", 2"
Sensor adapter Female 3/4" NPT
