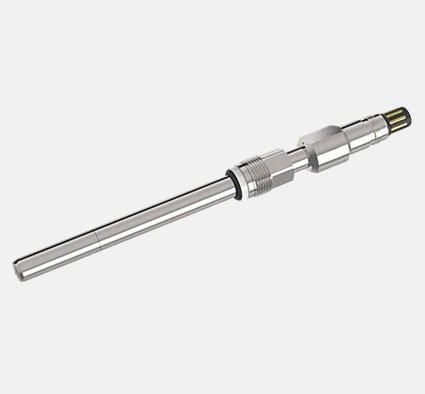

ph-01

Unique Features

  • Highly accurate Electrochemical - Polarographic
  • 316L Stainless Steel body sterilizable sensor
  • Silicone/Teflon Membrane Reinforced with Steel Mesh
  • Ra 0.4μm Surface Roughness of Wetted Parts
  • Silicone, EPDM (FDA approved) O-Ring

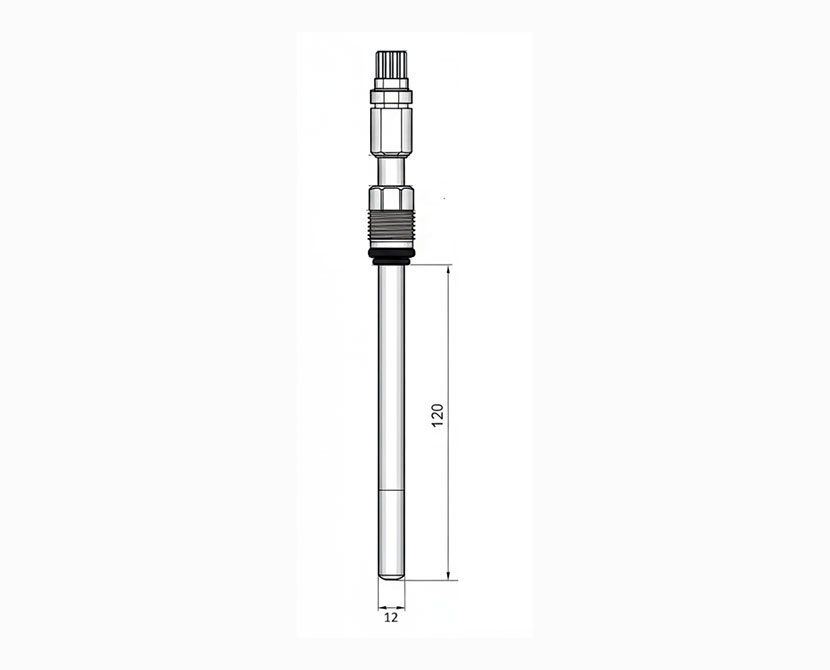

ph-01-dimensions
Specification Sheet
Dissolved Oxygen Sensor FermSense DO
Application Bio-pharmaceutical, Life Science & Fermentation
Type Electrochemical-Polarographic DO Sensor
Output 40 to 80 nA
O2 Range Saturation 0 to 300%
Accuracy ≤ ±1%
Steam Sterilizable Recommended: + 121 °C, 30 min
Temperature Sensor NTC 22K
Process Range Temperature 0 to 80 °C
Pressure 8 Bar
Response Time 98% of final value in < 60 s
Cable Connector VP6
Dimensions Surface Max. Ra 0.4μm (N5)
Diameter 12 mm
Length 120, 220, 320, 420 mm
Connector PG13.5
Application
  • Fermenters, Bio-reactors
  • Dairy, Brewery & Beverages
  • Boiler Feed Water
Download
FermSense DO_Datasheet
