300P

About Product

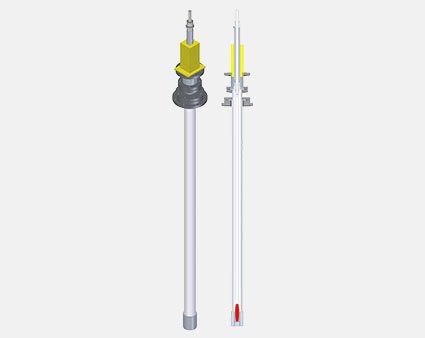

  • Top mounted assembly for Glass Lined Reactors or Jacketed Reactors.
  • Immersion dip pipe design for top entry installation.
  • Length available up to 2500mm.
  • Available in PTFE Lined assembly with PTFE and PPH wetted parts for GLR.
  • Pneumatic drive unit assembly for ease of operation.
  • Inbuilt flushing arrangement for sensor cleaning and safe keeping.
  • Process Connection: Flange.
  • Sensor Specification: Process sensor with ¾” NPT mounting threads.
300M-P-dimensions
Specification Sheet
Model 300P
Process Temperature Up to 80 °C
pH/DO Sensor Specs Process Sensor 3/4" NPT Connection
MOC PTFE, PPH
Seals EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection GLR flange size 150 (PN10 DIN2673)and above
Immersion length Up to 2500mm
Flushing Port G1/4" Female
Operating Air Pressure 4 to 6 Bar
Application
  • Chemical
  • Pharmaceuticals
Ordering Information
SmartDip 300P _Code MOC of Dip pipe Body
8 PTFE (+PPH)
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
_code Flange Size
XXXX e.g. PN10 DIN2673 Size 150 & Above
_code Immersion Length
XXXX Immersion length from flange position.
NOTE: Mention type and MOC of batch reactor in your inquiry. We may also require GA drawing for custom designing.
Provide margin for 80mm extension stroke length for measuring position while calculating required immersion length from flange position.
Consider minimum liquid level in the batch reactor while calculating immersion length from flange position. Shorter assembly are always more stable.
In plastic version the outer dip pipe is PTFE lined while the internal extension assemblies for sensor housing and sensor mounting are PPH.
