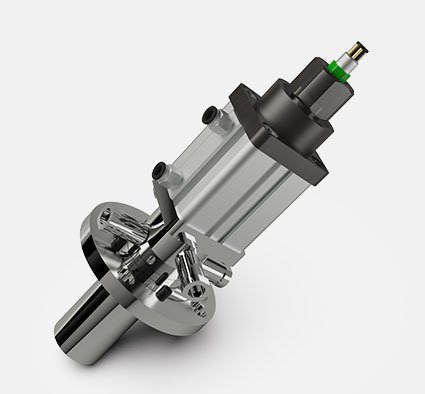

405M

About Product

  • Available in various material such as SS 316L, SS 904L, Titanium, Hastelloy C22 for wetted parts.
  • Available in various sealing material such as EPDM, VITON, KALREZ.
  • Integrated position feedback (Optional)
  • Flange size ANSI 2” and above
  • Immersion length 109mm extendable up to 209mm with SmartDip 405M-Ex
  • Stroke length 40mm
  • Final measurement length 149mm extendable up to 249mm with SmartDip 405M-Ex

Unique Features

  • Large flushing path for harsh chemical conditions such as slurry and suspended solids.
  • Protective mounting sleeve for 325mm & 425mm long glass pH electrodes.
  • Short 40mm stroke length for less wear & tear.
  • Scrap & Seal assembly for durability of the sealing material.
Know More Know More

Benefits

  • Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
  • Improved accuracy, reliability and life of process sensors such as pH Electrodes.
  • Ease of operation and maintenance of measurement point.
  • Plug & Use Modular design for ease of installation and maintenance.
  • Pneumatic assembly for remote operation
  • Usable in hazardous areas and awkward positions.
  • Can be fully automated with SmartControl Auto control panel.

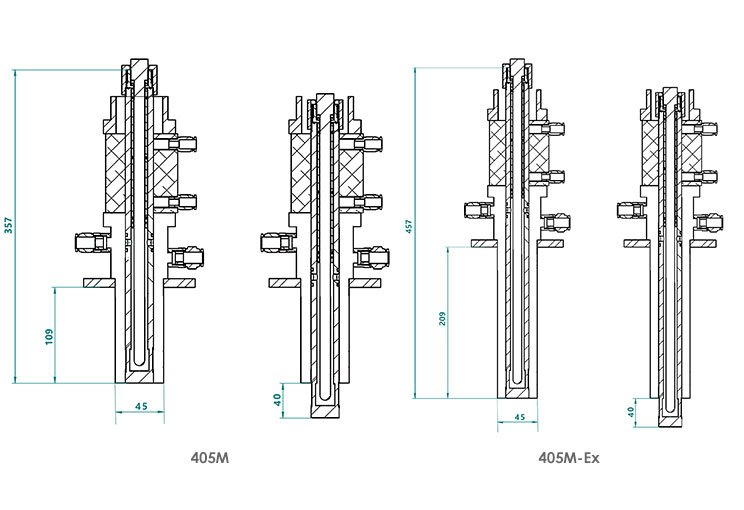

405M-P-dimensions
Specification Sheet
Model 405M 405M-Ex
Pressure 0 to 10 Bar
Process Temperature -10 to 140 °C
Immersion Length 109 mm 209 mm
O-ring posision NA
pH/DO Sensor Specs 325mm ø12 PG13.5 425mm ø12 PG13.5
Wetted Material SS316L, SS904L, C22 Hastelloy, Titanium
Seals EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection Flange ANSI 2" and Above
Flushing Port G1/4" Female
Surface Finish Ra Value <0.3
Operating Air Pressure 4 to 6 Bar
Limit Switch Pneumatic/Reed Switch
Application
  • Chemical
  • Wastewater
  • Effluent Treatment
  • Pulp & Paper Industry
  • Sugar Industry
  • Power Plant
  • Battery Recycling
Ordering Information
SmartDip 405M _Code MOC of Wetted Parts
SmartDip 405M-Ex
1 316L
2 904L
3 C22
4 Titanium
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
_code Process Connection
F2 Flange ANSI 2" #150
F3 Flange ANSI 3" #150
_code Position Feedback
RD Megnetic Reed Switch
PN Pneumatic
NA Not Required
