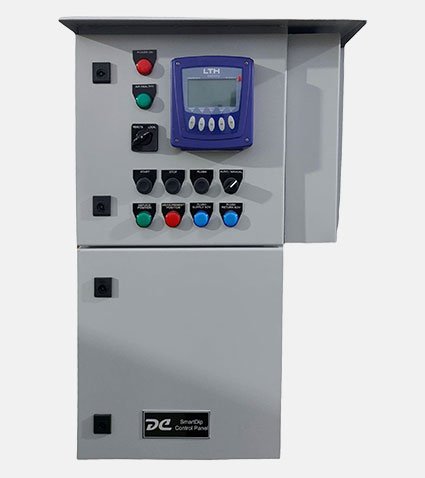

Electro-Pneumatic control panel for automated operation of pneumatically operated retractable electrode housings such as SmartDip 400 series and top mounted retractable assembly SmartDip 300 series.
Designed for safe area application with ingress protection IP-56
Accessories for Instrument airand flushing liquid are integrated within the utility compartment of the panel for the pneumatic actuation of the retractable housing and cleaning sequence of the flushing chamber respectively.
Panel mounted instrument such as pH or DO transmitter/controller as per customer’s requirement.
HMI for touch screen operation and graphical representation as per customer’s requirement. (OPTIONAL)

Programmable operations with position feedback of electrode for insertion to measurement position, electrode retraction to service position and cleaning cycles as per process requirements.
Customization is available to include process automation solutions such as dosing control of reagents, valve automation for process control.
Integration of multiple other measurement and control instruments can be done within the panel as per customer’s requirement.
Programmable Operations for SIP/CIP cycles as per process requirements.

Electro-Pneumatic control panel for automated operation of pneumatically operated retractable electrode housings such as SmartDip 400 series and top mounted retractable assembly SmartDip 300 series.
Panel mounted instrument such as pH or DO transmitter/controller as per customer’s requirement.
HMI for touch screen operation and graphical representation as per customer’s requirement. (OPTIONAL)

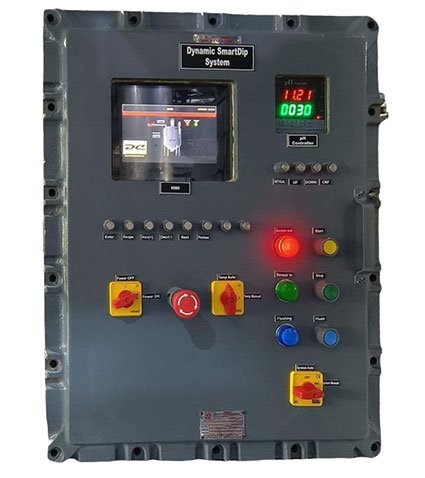

Ex-d as per IS/IEC 60079-1:2014 suitable for installation in hazardous location of gas group IIA & IIB, Zone 1 & 2.
Ingress protection IP-65 as per IS/IEC 60529:2001.
The utility panel is separately provided with Explosion proof rated solenoid valves.

Programmable operations with position feedback of electrode for insertion to measurement position, electrode retraction to service position and cleaning cycles as per process requirements.
Customization is available to include process automation solutions such as dosing control of reagents, valve automation for process control.
Integration of multiple other measurement and control instruments can be done within the panel as per project requirement.
Programmable Operations for SIP/CIP cycles as per process requirements.

It is a compact panel having manually operated air control valve for the operation of pneumatically operated retractable electrode housings.
Operate a simple hand lever to toggle between measurement position and service position.
Manual isolation valve is provided for the cleaning liquid of the flushing chamber.
