SmartDip 220M

SmartDip 220M

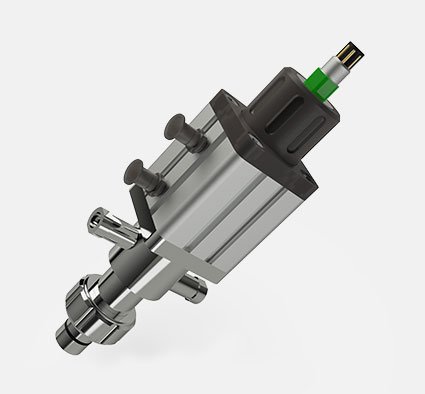

SmartDip 220M is a compact retractable electrode housing with manual drive Unit. This metal body model can be implemented in different chemical applications including fermenters and bio-reactors in Bio-pharmaceutical industries. Various type of process connections such as Flange, Triclover, Ingold Fitting and Dairy Fitting are available for mounting on reactor or vessels side nozzle for in-situ measurementor on a T connection in pipe line for in-line measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.

About Product

Available in various material such as SS 316L, SS 904L, Titanium, Hastelloy C22 for wetted parts.
Available in various sealing material such as EPDM, VITON, KALREZ.
Various process connections: Flange size ANSI 1.5” and above, Triclover, G1-1/4” Ingold, Dairy Fitting
Immersion length 40mm extendable up to 60mm for Ingold fitting
Stroke length 40mm

Unique Features

Compact design suitable for Bio-pharma, food and dairy industries.
Fits 225mm long electrodes which are more readily available and durable.
Longer cleaning path for improved CIP-SIP results.
Short 40mm stroke length for less wear & tear.
Scrap & Seal assembly for durability of the sealing material.

Know More Know More

Benefits

Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
Improved accuracy, reliability and life of process sensors such as pH Electrodes.
Ease of operation and maintenance of measurement point.
Plug & Use Modular design for ease of installation and maintenance.
Usable in hazardous areas and awkward positions.
Ergonomic manual operation with two position latch mechanism.

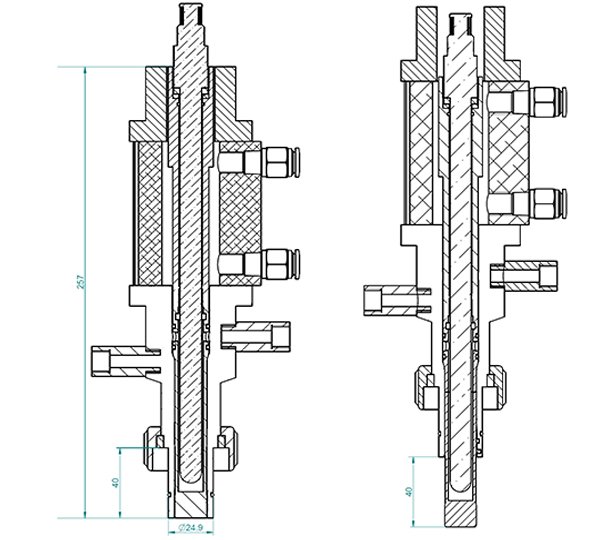

420-220M-P-dimensions

Model	220M
Pressure	0 to 10 Bar
Temperature	-10 to 140 °C
Immersion Length	40 mm (up to 60 mm)
O-ring posision	28 mm (up to 48 mm)
Sensors	225mm ø12 PG13.5
Wetted Material	SS316L, SS904L, C22 Hastelloy, Titanium
Seals	EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection	Flange ANSI 1.5" and Above, G11/4" Ingold, TriClover, Dairy Fitting
Surface Finish	Ra Value <0.3
Flushing Port	G1/4" Female

Application

Bio-Pharma
Food & Baverages
Dairy Industry

Ordering Information

SmartDip 220M	_Code	MOC of Wetted Parts
	1	316L
	2	904L
	3	C22
	4	Titanium
		_code	MOC of Seals
		EP	EPDM
		VI	VITON (FPM)
		FK	FFKM (Kalrez)
			_code	Process Connection
			F1	Flange ANSI 1-1/2" #150
			F2	Flange ANSI 2" #150
			F3	Flange ANSI 3" #150
			G	Ingold G1-1/4"
			T1	Triclover ISO DN25/32, DIN DN25/32
			T2	Triclover ISO DN40, DIN DN40/50
			D1	Dairy Fitting DN50
			D2	Dairy Fitting DN60
