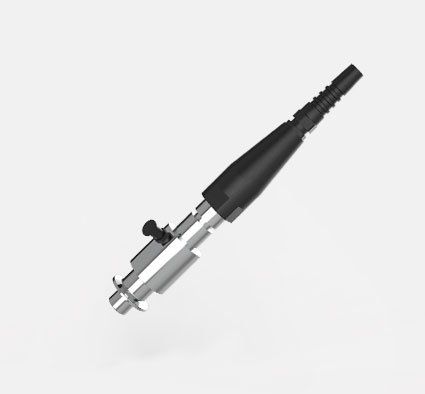

205M

About Product

  • Available in various material such as SS 316L, SS 904L, Titanium, Hastelloy C22 for wetted parts.
  • Available in various sealing material such as EPDM, VITON.
  • Various process connections: Tri-clover Clamp DN32, NPT 1” Male Thread.
  • Stroke length 40mm

Unique Features

  • Compact design suitable for inline measurement application in Water, food& Beverage and dairy industries.
  • Fits 120mm long electrodes which are more readily available and durable.
  • Short 40mm stroke length for less wear & tear.
  • Scrap & Seal assembly for durability of the sealing material.

Benefits

  • Quick and easy Sensor retraction for calibration or maintenance without process interruption.
  • Ease of operation and maintenance of measurement point.
  • Plug & Use Modular design for ease of installation and maintenance.
  • Usable in hazardous areas and awkward positions.
  • Ergonomic manual operation with latch mechanism.

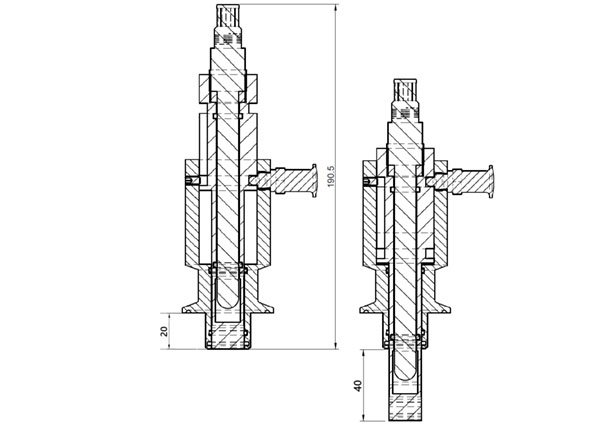

240M-dimensions
Specification Sheet
Model 240M
Pressure 0 to 10 Bar
Temperature -10 to 140 °C
Sensors 120mm ø12 PG13.5
Wetted Material SS316L, SS904L, C22 Hastelloy, Titanium
Seals EPDM, FPM (Viton)
Process Connection Tri-clover, NPT 1” Male Thread
Application
  • Bio-Pharma
  • Food & Baverages
  • Dairy Industry
  • Chemical Process
  • Petrochemicals & Refinery
  • Pulp & Paper Industry
  • Power Plant
  • Battery Recycling
Ordering Information
SmartDip 240M _Code MOC of Wetted Parts
1 316L
2 904L
3 C22
4 Titanium
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
_Code Process Connection
N2 1'' NPT Thread
T1 Triclover ISO DN25/32, DIN DN25/32/40
D1 Dairy Fitting DN50
D2 Dairy Fitting DN60
