Specification Sheet

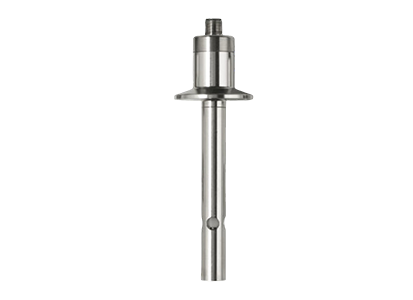

Conductivity/TDS Sensor Parameter Conductivity / TDS
Technology Contacting Conductivity Electrode
Cell Constants 0.01, 0.1, 1, 10
Process Temperature up to 180 °C
Body MOC 316 Stainless Steel
Temperature Compensation Inbuilt PT100 / PT1000
Process Connection NPT 1/2", NPT 3/4"
Application Boiler Water, Cooling Tower, Pure Water

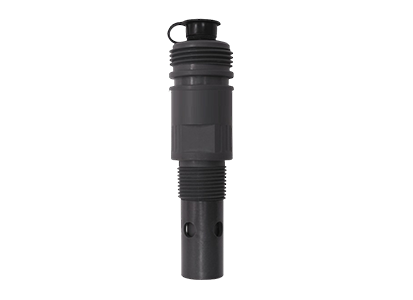

Parameter Conductivity
Technology Toroidal Non-contact Conductivity Sensor
Process Temperature up to 135 °C
Body MOC PEEK / PP
Temperature Compensation Inbuilt PT100 / PT1000
Process Connection NPT 1/2", NPT 3/4"
Application Chemical Concentration Measurement, Acids, Scrubber Water, Phase Separation

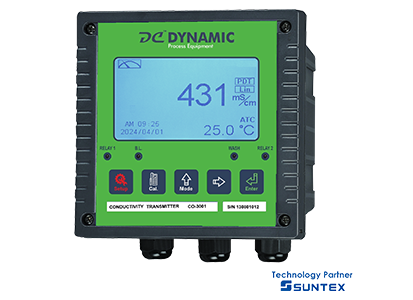

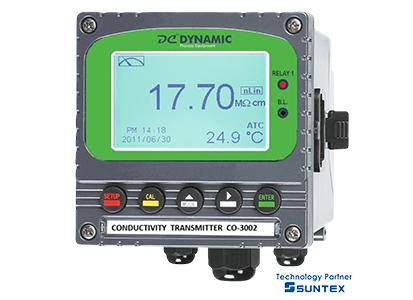

Conductivity Controller Type Conductivity Controller
Body Moulded PC/ABS
Ingress Protection IP 66
Display Dual Display LED Backlit
Analogue Output 4-20 mA DC, galvanically isolated output
Relay Output 2 Output Relays
Temperature Input Automatic Compensation PT-100/PT-1000
Power Input 24V DC / 230V AC
Mounting Field and Panel Mounted
