SmartDip 240P

SmartDip 240P

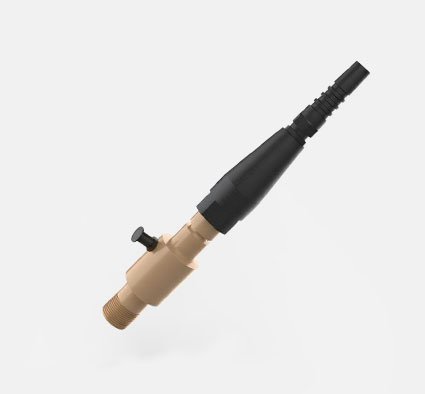

SmartDip 240P is a compact retractable electrode housing for 120mm long liquid analytical sensors with 12mm Diameter and PG-13.5 process connection. This plastic body compact model can be used for different analytical sensors such as pH, ORP, Dissolved Oxygen, Conductivity, Turbidity etcetera. NPT 1” Process connections is available for mounting on pipe lines, reactor or vessels for in-situ measurement.

About Product

Available in PEEK material for wetted parts.
Available in various sealing material such as EPDM, VITON.
Process connections: NPT 1” Male Thread.
Stroke length 40mm

Unique Features

Compact design suitable for inline measurement application in Water, Pharmaceutical & Chemical Industry.
Fits 120mm long electrodes which are more readily available and durable.
Short 40mm stroke length for less wear & tear.
Scrap & Seal assembly for durability of the sealing material.

Benefits

Quick and easy Sensor retraction for calibration or maintenance without process interruption.
Ease of operation and maintenance of measurement point.
Plug & Use Modular design for ease of installation and maintenance.
Usable in hazardous areas and awkward positions.
Ergonomic manual operation with latch mechanism.

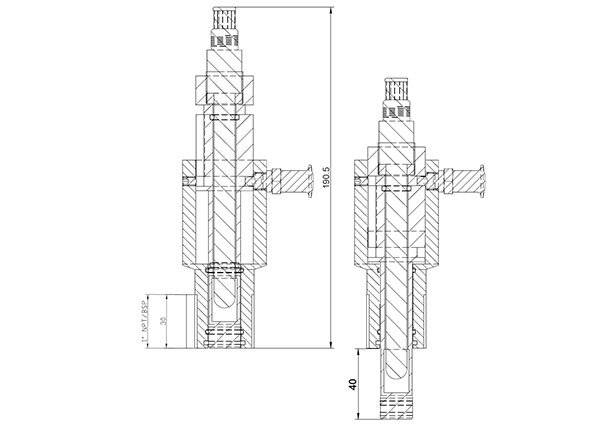

240P-dimensions

Model	240
Pressure	0 to 10 Bar
Temperature	-10 to 140 °C
Sensors	120mm ø12 PG13.5
Wetted Material	PEEK
Seals	EPDM, FPM (Viton)
Process Connection	1” Male Thread

Application

Chemical Process
Wastewater
Petrochemicals & Refinery
Pulp & Paper Industry
Power Plant
Battery Recycling
