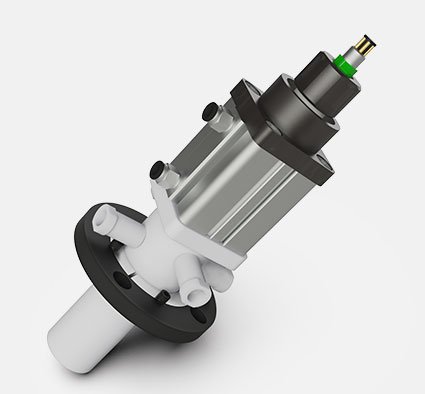

405P

About Product

  • Available in various material such as PP, PVDF and PEEK for wetted parts.
  • Available in various sealing material such as EPDM, VITON, KALREZ.
  • Integrated position feedback (Optional)
  • Flange size ANSI 2” and above
  • Immersion length 109mm
  • Stroke length 40mm
  • Final measurement length 149mm

Unique Features

  • Large flushing path for harsh chemical conditions such as slurry and suspended solids.
  • Protective mounting sleeve for 325mm long glass pH electrodes.
  • Short 40mm stroke length for less wear & tear.
  • Scrap & Seal assembly for durability of the sealing material.
Know More Know More

Benefits

  • Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
  • Improved accuracy, reliability and life of process sensors such as pH Electrodes.
  • Ease of operation and maintenance of measurement point.
  • Plug & Use Modular design for ease of installation and maintenance.
  • Pneumatic assembly for remote operation
  • Usable in hazardous areas and awkward positions.
  • Can be fully automated with SmartControl Auto control panel.

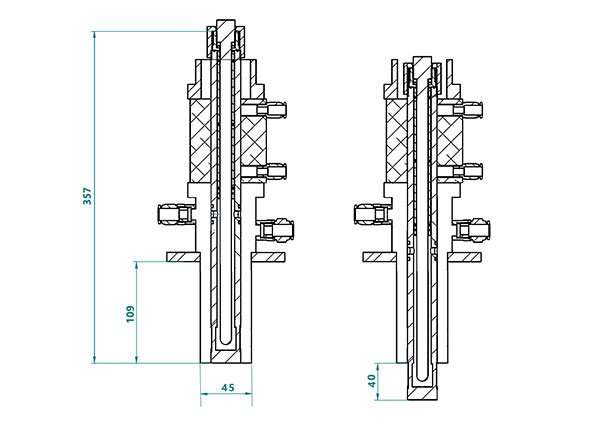

405-205M-P-dimensions
Specification Sheet
Model 405P
Pressure 0 to 7 Bar
Process Temperature up to 140 °C
Immersion Length up to 109 mm
O-ring posision NA
pH/DO Sensor Specs 325mm ø12 PG13.5
Wetted Material PP, PVDF, PEEK
Seals EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection Flange ANSI 2" and Above
Flushing Port G1/4" Female
Operating Air Pressure 4 to 6 Bar
Limit Switch Pneumatic/Reed Switch
Application
  • Chemical
  • Wastewater
  • Effluent Treatment
  • Dyes, Pigments & Intermediates
Ordering Information
SmartDip 405P _Code MOC of Wetted Parts
5 PP
6 PVDF
7 PEEK
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
_code Process Connection
F2 Flange ANSI 2" #150
F3 Flange ANSI 3" #150
_code Position Feedback
RD Megnetic Reed Switch
PN Pneumatic
NA Not Required
