SmartDip 401M

SmartDip 401M

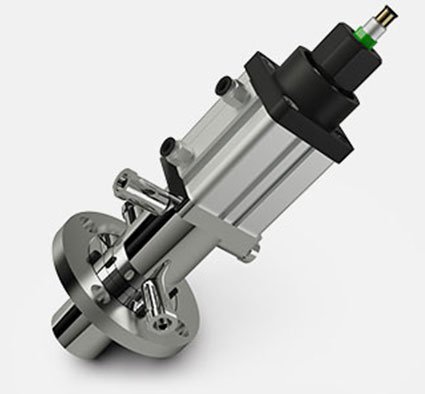

SmartDip 401M is a retractable electrode housing with pneumatically operated drive Unit. This metal body model can be implemented in harsh chemical applications through flange mounting on reactor’s side nozzle for in-situ measurement or on a T connection in pipe line for in-line measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.

About Product

Available in various material such as SS 316L, SS 904L, Titanium, Hastelloy C22 for wetted parts.
Available in various sealing material such as EPDM, VITON, KALREZ.
Integrated position feedback (Optional)
Flange size ANSI 2” and above
Immersion length 69mm
Stroke length 40mm
Final measurement length 109mm

Unique Features

Large flushing path for harsh chemical conditions such as slurry and suspended solids.
Protective mounting sleeve for 325mm long glass pH electrodes.
Short 40mm stroke length for less wear & tear.
Scrap & Seal assembly for durability of the sealing material.

Know More Know More

Benefits

Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
Improved accuracy, reliability and life of process sensors such as pH Electrodes.
Ease of operation and maintenance of measurement point.
Plug & Use Modular design for ease of installation and maintenance.
Pneumatic assembly for remote operation
Usable in hazardous areas and awkward positions.
Can be fully automated with SmartControl Auto control panel.

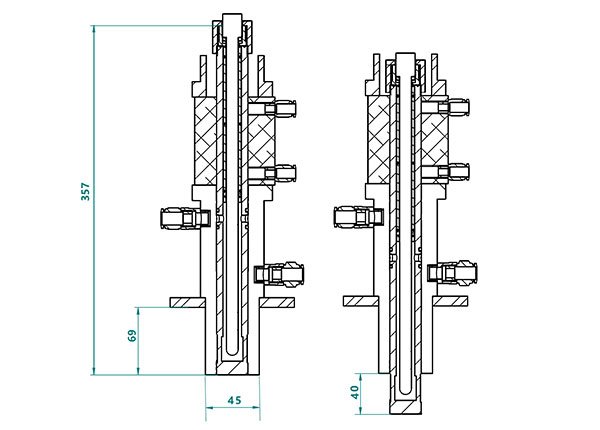

401M-P-dimensions

Model	401M
Pressure	0 to 10 Bar
Process Temperature	-10 to 140 °C
Immersion Length	69 mm
O-ring posision	NA
pH/DO Sensor Specs	325mm ø12 PG13.5
Wetted Material	SS316L, SS904L, C22 Hastelloy, Titanium
Seals	EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection	Flange ANSI 2" and Above
Flushing Port	G1/4" Female
Surface Finish	Ra Value <0.3
Operating Air Pressure	4 to 6 Bar
Limit Switch	Pneumatic/Reed Switch

Application

Chemical
Wastewater
Effluent Treatment
Pulp & Paper Industry
Sugar Industry
Power Plant
Battery Recycling

Ordering Information

SmartDip 401M	_Code	MOC of Wetted Parts
	1	316L
	2	904L
	3	C22
	4	Titanium
		_code	MOC of Seals
		EP	EPDM
		VI	VITON (FPM)
		FK	FFKM (Kalrez)
			_code	Process Connection
			F2	Flange ANSI 2" #150
			F3	Flange ANSI 3" #150
				_code	Position Feedback
				RD	Megnetic Reed Switch
				PN	Pneumatic
				NA	Not Required
