205M

About Product

  • Available in various material such as SS 316L, SS 904L, Titanium, Hastelloy C22 for wetted parts.
  • Available in various sealing material such as EPDM, VITON, KALREZ.
  • Flange size ANSI 2” and above
  • Immersion length 109mm extendable up to 209mm with SmartDip 205M-Ex
  • Stroke length 40mm
  • Final measurement length 149mm extendable up to 249mm with SmartDip 205M-Ex

Unique Features

  • Large flushing path for harsh chemical conditions such as slurry and suspended solids.
  • Protective mounting sleeve for 325mm & 425mm long glass pH electrodes.
  • Short 40mm stroke length for less wear & tear.
  • Scrap & Seal assembly for durability of the sealing material.
Know More Know More

Benefits

  • Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
  • Improved accuracy, reliability and life of process sensors such as pH Electrodes.
  • Ease of operation and maintenance of measurement point.
  • Plug & Use Modular design for ease of installation and maintenance.
  • Usable in hazardous areas and awkward positions.
  • Ergonomic manual operation with two position latch mechanism.

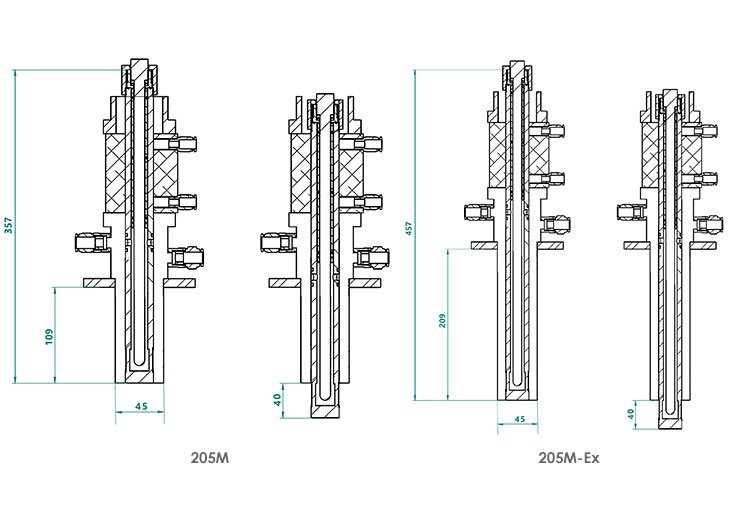

405-205M-P-dimensions
Specification Sheet
Model 205M 205M-Ex
Pressure 0 to 10 Bar
Temperature -10 to 140 °C
Immersion Length 109 mm 209 mm
O-ring posision NA
Sensors 325mm ø12 PG13.5 425mm ø12 PG13.5
Wetted Material SS316L, SS904L, C22 Hastelloy, Titanium
Seals EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection Flange ANSI 2" and Above
Surface Finish Ra Value <0.3
Flushing Port G1/4" Female
Application
  • Chemical
  • Wastewater
  • Effluent Treatment
  • Pulp & Paper Industry
  • Sugar Industry
  • Power Plant
  • Battery Recycling
Ordering Information
SmartDip 205M _Code MOC of Wetted Parts
SmartDip 205M-Ex
1 316L
2 904L
3 C22
4 Titanium
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
_code Process Connection
F2 Flange ANSI 2" #150
F3 Flange ANSI 3" #150
