con-02

Unique Features

  • High accuracy 2-electrode sensor for pure water application
  • Titanium electrode for durability & corrosion resistance
  • Integrated temperature sensor
  • Various available cell constants for measurmeent across wide range
con-02
Specification Sheet

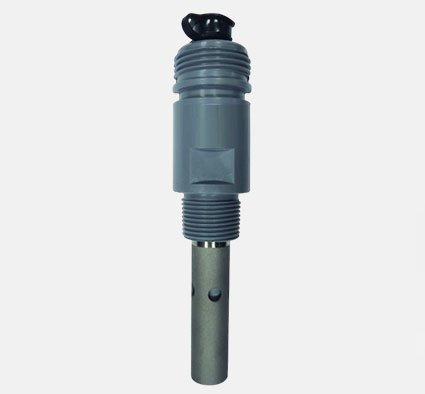

Conductivity Sensor 2-Electrode AquaSense CON-02
Application Pure & Ultra-pure Water measurement
Model CON-0201 CON-0202 CON-0203
Type 2-Electrode System
Range Conductivity 0.05-20.0μS/cm 0.05-100.0μS/cm 0.1-200.0μS/cm
Resistivity 0-20.00MΩ.cm 0-18.00MΩ.cm 0-10.00MΩ.cm
Temperature Sensor NTC 30K
Process Range Temperature 0 to 70 °C
Pressure 0 to 7 Bar
Electrode Material Titanium
Body Material CPVC
Cell Constant 0.01 cm-1 0.05 cm-1 0.1 cm-1
Process Connection 3/4" NPT Male

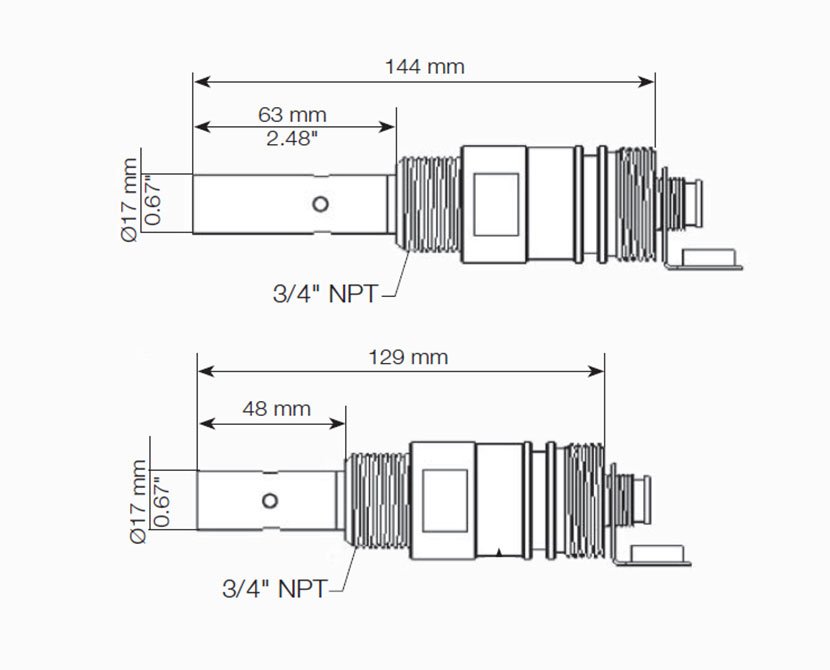

Dimensions Diameter 17 mm
Insertion Length 63 mm 63 mm 48 mm
Application
  • Pure & Ultra-pure Water Measurement
  • RO Plant
  • DM Water
Download
AquaSense CON-02_Datasheet
