Unique Features

  • High accuracy 2-electrode sensor for pure water, Pharmaceutical, Food & Dairy application
  • 316L Stainless Steel body sterilizable sensor with hygienic triclover fitting
  • SS 316L Electrode
  • Integrated temperature sensor
con-02
Specification Sheet

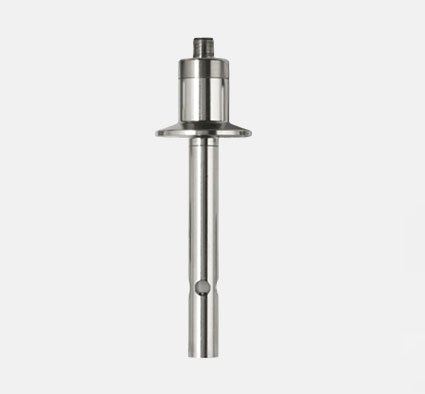

Conductivity Sensor Hygienic AquaSense CON-02HY
Application Hygienic Application
Model CON-02HY
Type 2-Electrode System
Range Conductivity 0.05-20.0μS/cm 0.1-1000.0μS/cm
Temperature Sensor PT 1000
Process Range Temperature 0 to 135 °C
Pressure 0 to 16 Bar (@25 °C)
Electrode Material SS316L
Body Material SS316L
Cell Constant 0.01 cm-1 0.1 cm-1-1
Process Connection Triclover Clamp DN 25

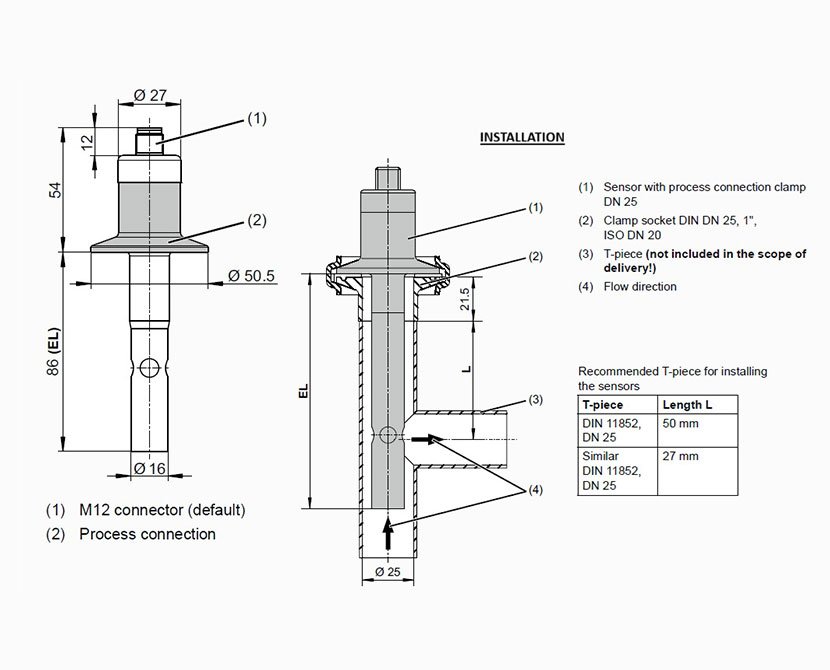

Dimensions Diameter 16 mm
Insertion Length 115 mm 86 mm
Application
  • Pure & Ultra-pure Water Measurement
  • Pharmaceutical, Food & Dairy Industries
