SmartDip 401M is a retractable electrode housing with pneumatically operated drive Unit. This metal body model can be implemented in harsh chemical applications through flange mounting on reactor’s side nozzle for in-situ measurement or on aT connection in pipe line for in-line measurement.The drive unit inserts the measurement sensor into the reaction mass and retractsback to the flushing chamber for cleaning and storage in stand by condition.
SmartDip 401P is a retractable electrode housing with pneumatically operated drive Unit. This plastic body model can be implemented in harsh chemical applications through flange mounting on reactor’s side nozzle for in-situ measurement or on a T connection in pipe line for in-line measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.
SmartDip 405M is a retractable electrode housing with pneumatically operated drive Unit. This metal body model can be implemented in harsh chemical applications through flange mounting on reactor’s side nozzle for in-situ measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.SmartDip 405M-Ex is available with extended immersion length.
SmartDip 405P is a retractable electrode housing with pneumatically operated drive Unit. This plastic body model can be implemented in harsh chemical applications through flange mounting on reactor’s side nozzle for in-situ measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.
SmartDip 420M is a compact retractable electrode housing with pneumatically operated drive Unit. This metal body model can be implemented in different chemical applications including fermenters and bio-reactors in Bio-pharmaceutical industries. Various type of process connectionssuch as Flange, Triclover, Ingold Fitting and Dairy Fitting are available for mounting on reactor or vessels side nozzle for in-situ measurementor on a T connection in pipe line for in-line measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.
SmartDip 420P is a compact retractable electrode housing with pneumatically operated drive Unit. This plastic body model can be implemented in different chemical applications including fermenters and bio-reactors in Bio-pharmaceutical industries. Various type of process connections such as Flange, Triclover, Ingold Fitting and Dairy Fitting are available for mounting on reactor or vessels side nozzle for in-situ measurementor on a T connection in pipe line for in-line measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.
SmartDip 110M is a staticelectrode housing with standard ¾” NPT male threads for process connection. This metal body model can be implemented in chemical vessels, reactors and inline applications through NPT nozzle or Dip pipe assembly.1” NPT version is available in SmartDip 115M model.
SmartDip 110P is a static electrode housing with standard ¾” NPT male threads for process connection. This plastic body model can be implemented in chemical vessels, reactors and inline applications through NPT nozzle or Dip pipe assembly. 1” NPT version is available in SmartDip 115P model.
SmartDip TopMount 300M is a retractable electrode housing assembly that can be implemented in chemical vessels and reactors through top flanged nozzles of Jacketed Reactors where side nozzles are not available. This metal or plastic variant assembly is designed like long immersion dip pipes with retractable electrode housing andextended electrode mounting arrangements. It also features an internal flushing arrangement for cleaning and safekeeping of electrode in standby conditions.
SmartDip TopMount 300P is a retractable electrode housing assembly that can be implemented in chemical vessels and reactors through top flanged nozzles of Glass Lined Reactors or Jacketed Reactors where side nozzles are not available. This metal or plastic variant assembly is designed like long immersion dip pipes with retractable electrode housing and extended electrode mounting arrangements. It also features an internal flushing arrangement for cleaning and safekeeping of electrode in standby conditions.
SmartFlow Assembly is a flow through sensor mounting assembly for direct mounting of process sensor such as pH/ORP Electrodes for inline measurement application. It is made out of non-corrosive high-quality thermo-plastic PPH material. This model is designed to ensures that the incoming flow is not hitting the sensor tip directlyto reduce erosion and minimize premature failure. The design also ensures minimum level so that the sensor tip is always kept wetted.
T-fittings are custom built flow through sensor mounting assembly for direct mounting of process sensor such as pH/ORP Electrodes, conductivity sensors etcetera for inline measurement application.For pH electrode mounting the sensor holder of T-Fitting can be designed for installation of static fittings.Various Retractable electrode housing can also be installed on the T-Fitting according to process requirement. Customer can choose between plain SS316 fitting or PTFE lined fitting. It can be customized for installation of Flange, Female NPT Nozzle, TricloverSocket or G1-1/4” Ingold Socket for the mounting of static fittingor retractable electrode housing.
Dynamic Process Equipment provides various automation solutions for liquid process analytics and process control. Control panels for the operation of pneumatically retractable electrode housings are available for safe areaand for hazardous area application.
This non-metallic,well-designed accessory is used as a sensor cap to guard the cable connector of the sensors such as VP-6, S8 and K9 connectors used with pH Electrodes and DO sensors.

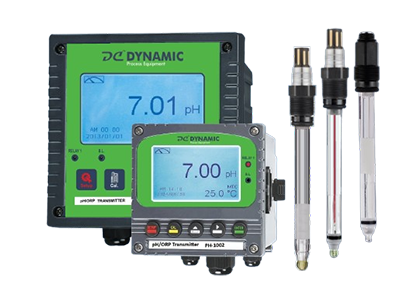

At Dynamic Process Equipment we provide a comprehensive range of pH/ORP sensors and transmitters tailored to suit a diverse array of liquid process analytics. Whether it is pharmaceuticals, Life-science and Bio Technology or Specialty chemicals we understand that every application is unique, which is why we offer solutions tailored to specific requirements.

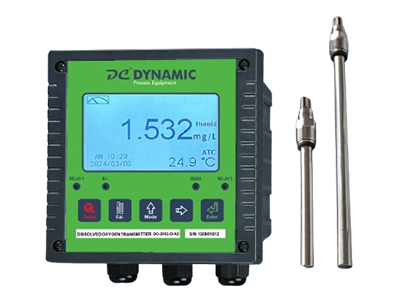

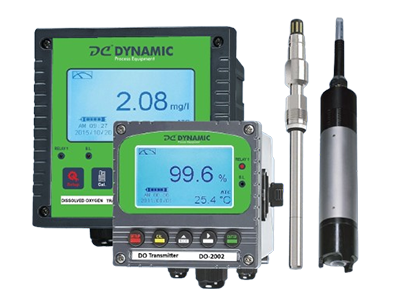

At Dynamic Process Equipment we provide Dissolved Oxygen sensors of various body types for use in Fermenters & Bio-reactors.

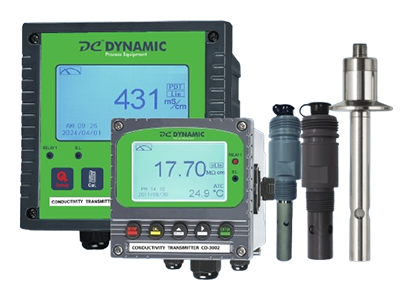

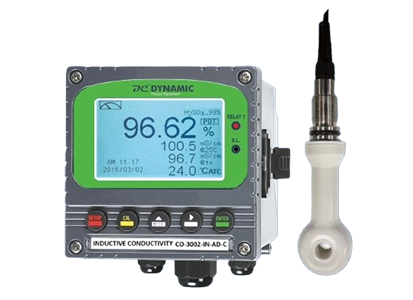

At Dynamic Process Equipment we provide a comprehensive range of conductivity / TDS Sensors tailored to suit a diverse array of liquid process analytics. Whether it is Boiler water, cooling tower, or Chemical application for Concentration measurement or phase-separation we understand that every application is unique, which is why we offer solutions tailored to specific requirements.

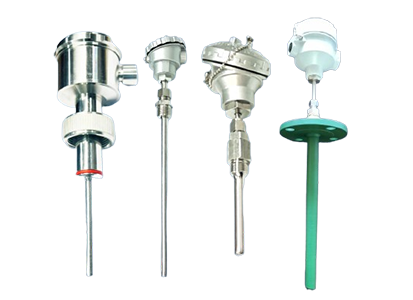

At Dynamic Process Equipment we provide a comprehensive range of temperature sensors tailored to suit a diverse array of liquid process analytics. Whether it is Reactors or inline measurement, direct insertion or through thermos-well application we understand that every application is unique, which is why we offer solutions tailored to specific requirements.

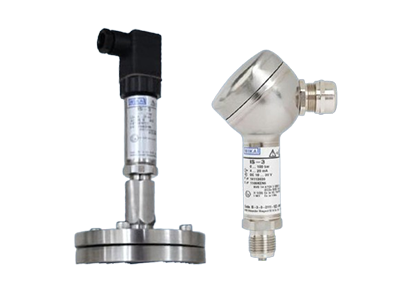

At Dynamic Process Equipment we provide a comprehensive range of pressure sensors and transmitters tailored to suit a various application. Whether it is Reactors nozzle, or inline measurement or differential pressure measurement we understand that every application is unique, which is why we offer solutions tailored to specific requirements.

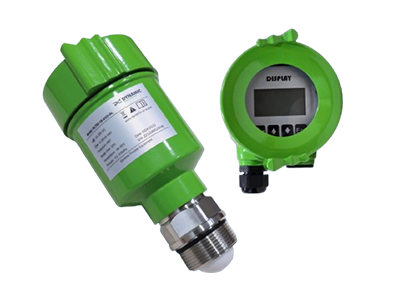

At Dynamic Process Equipment we provide a comprehensive range of level transmitters to suit a various application. Whether it is Reactors nozzle or a storage vessel level measurement we understand that every application is unique, which is why we offer solutions tailored to specific requirements.
