SmartDip 420P

SmartDip 420P

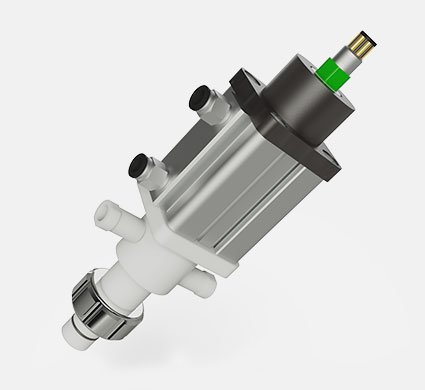

SmartDip 420P is a compact retractable electrode housing with pneumatically operated drive Unit. This plastic body model can be implemented in different chemical applications including fermenters and bio-reactors in Bio-pharmaceutical industries. Various type of process connections such as Flange, Triclover, Ingold Fitting and Dairy Fitting are available for mounting on reactor or vessels side nozzle for in-situ measurementor on a T connection in pipe line for in-line measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.

About Product

Available in various material such as PVDF and PEEK for wetted parts.
Available in various sealing material such as EPDM, VITON, KALREZ.
Integrated position feedback (Optional)
Various process connections: Flange size ANSI 1.5” and above, G1-1/4” Ingold
Immersion length 40mm extendable up to 60mm for Ingold fitting
Stroke length 40mm

Unique Features

Compact design suitable for Bio-pharma, food and dairy industries.
Fits 225mm long electrodes which are more readily available and durable.
Longer cleaning path for improved CIP results.
Short 40mm stroke length for less wear & tear.
Scrap & Seal assembly for durability of the sealing material.

Know More Know More

Benefits

Quick and easy Sensor cleaning, calibration or maintenance without process interruption.
Improved accuracy, reliability and life of process sensors such as pH Electrodes.
Ease of operation and maintenance of measurement point.
Plug & Use Modular design for ease of installation and maintenance.
Pneumatic assembly for remote operation
Usable in hazardous areas and awkward positions.
Can be fully automated with SmartControl Auto control panel.

420-220M-P-dimensions

Model	420P
Pressure	0 to 7 Bar
Process Temperature	up to 140 °C
Immersion Length	40 mm
O-ring posision	28 mm
pH/DO Sensor Specs	225mm ø12 PG13.5
Wetted Material	PVDF, PEEK
Seals	EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection	Flange ANSI 1.5" and Above, G11/4" Ingold, TriClover, Dairy Fitting
Flushing Port	G1/4" Female
Operating Air Pressure	4 to 6 Bar
Limit Switch	Pneumatic/Reed Switch

Application

Bio-pharma
Food & Baverages
Dairy Industry

Ordering Information

SmartDip 420P	_Code	MOC of Wetted Parts
	6	PVDF
	7	PEEK
		_code	MOC of Seals
		EP	EPDM
		VI	VITON (FPM)
		FK	FFKM (Kalrez)
			_code	Process Connection
			F1	Flange ANSI 1-1/2" #150
			F2	Flange ANSI 2" #150
			F3	Flange ANSI 3" #150
			G	Ingold G1-1/4"
				_code	Position Feedback
				RD	Megnetic Reed Switch
				PN	Pneumatic
				NA	Not Required
