Unique Features

  • DIN 1/2, 144 mm x 144 mm Body
  • IP65 (NEMA 4X) Waterproof and dustproof design
  • Auto sensing, Backlit Large LCD Screen with adjustable contrast & brightness
  • Programmable Sensor Wiper Setting
  • Hi/Lo, Hi/Hi, Lo/Lo selectable two contact outputs with programmable set-points and hysteresis
  • Continuous sample measurements average function to enhance stability
  • Automatic sensor clean function with programmable time interval

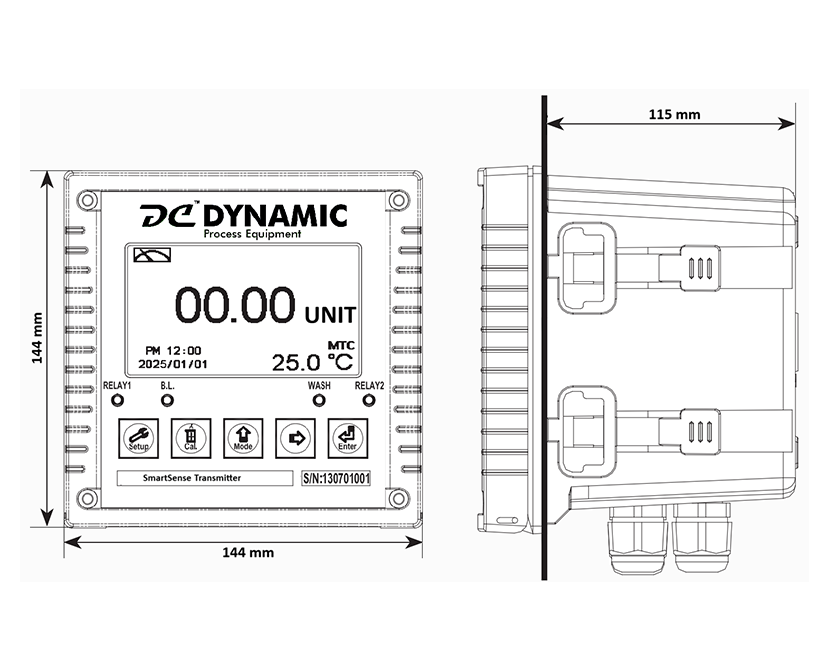

ph-01-dimensions
Specification Sheet

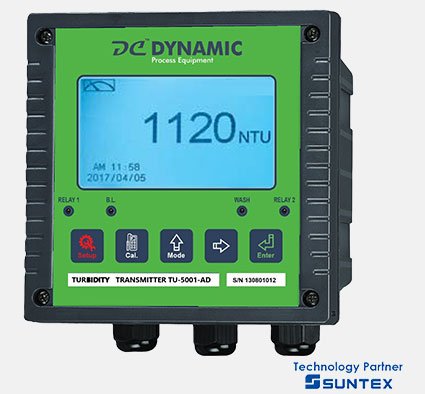

Turbidity Transmitter SmartSense TU-5001-AD
Model TU-5001-AD
Measuring Modes Turbidity/Suspended Solids
Measurement Range 0.00~100.00 NTU (TC-100 sensor)
0.0~500.0 NTU (TC-500 sensor)
0~3000 NTU (TC-3000 sensor)
0.0~1000.0 mg/l (ppm) (TCS-1000 sensor)
Sensor Wiper Auto, sensor internal function for fixed 10 min per wipe, or 30min per wipe(for TC-100 sensor only) Manual, setting from 2~9 min per wipe or 2~29 min per wipe (for TC-100 sensor only)
Electrode Zero Sensor internal zero point correction activation function
Display LCD with auto/manual illumination function, Text, Chart, Trace mode
Analog Output Isolated DC 0/4 to 20 mA corresponding to measurement, max load 500Ω
Serial Communication RS-485 (MODBUS RTU or ASCII)
Calibration Mode Standard solution up to 5 points calibration and correction factor calibration (for S.S., MLSS)
Event Log Last 50 Events
Output Relay Rating 240 VAC, 0.5A max. (recommended)
Set Point Hi/Lo, Hi/Hi, Lo/Lo selectable two limited programmable, ON/OFF
Ambient Temperature 0 to 50°C
Storage Temperature -20 to 70°C
Power Supply 100V to 240V AC ± 10%, 50/60Hz, 8W Max.
Installation Transmitter: Wall mounting, Pipe mounting, Panel mounting
Dimensions Enclosure H: 144 mm W: 144mm D:115 mm (1/2 DIN)
Panel Cut out 138 mm x 138 mm
Weight 0.8 kg
Protection IP 65 (NEMA 4X)
Basic Features
Waterproof protection
Waterproof protection

Provides the instrument safety with IP65 waterproof protection and front flap cover design for easy installation and wiring.

Dot-Matrix LCD

For convenience and better process safety, it reveals the last calibration records and a system setting overview.

Waterproof protection
Waterproof protection
Auto-Sense Backlight Display

For clear reading and energy saving, it turns on the backlight automatically when the environment becomes dark.

Graphical Menu

Allows extremely intuitive & quick setting and calibration.

Waterproof protection
Advance Features
Waterproof protection
RS-485 MODBUS protocol

Provides long-distance, multiple values and configuration info transmission and anti-electrical signal protection.

Real-time chart mode

3 minutes real-time dynamic graph to help you realize recent development in control.

Waterproof protection
Waterproof protection
Trace mode

Set up from 3 mins to four weeks duration of the measured value trend graph to help you master the process history.

Events logbook

Actions, current output out of range, power outages and error records, no need for standby and record them anymore.

Waterproof protection
Application
  • Wastewater/Effluent
  • Cooling water/Condensate Collection
  • Raw Water
  • Activated/Digestion Sludge
Ordering Information
SmartSense TU-5001 _Code Firmware Version
- AD Advance Version
Download
SmartSense TU-5001-AD_Datasheet
