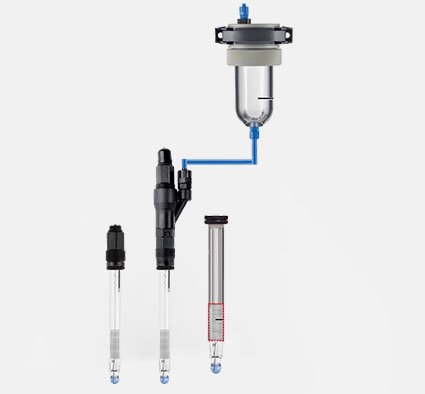

ph-01

Unique Features

  • 1x or 3x Zirconium dioxide diaphragm
  • Cartridge-style conduction system
  • Fitting for refillable KCl design

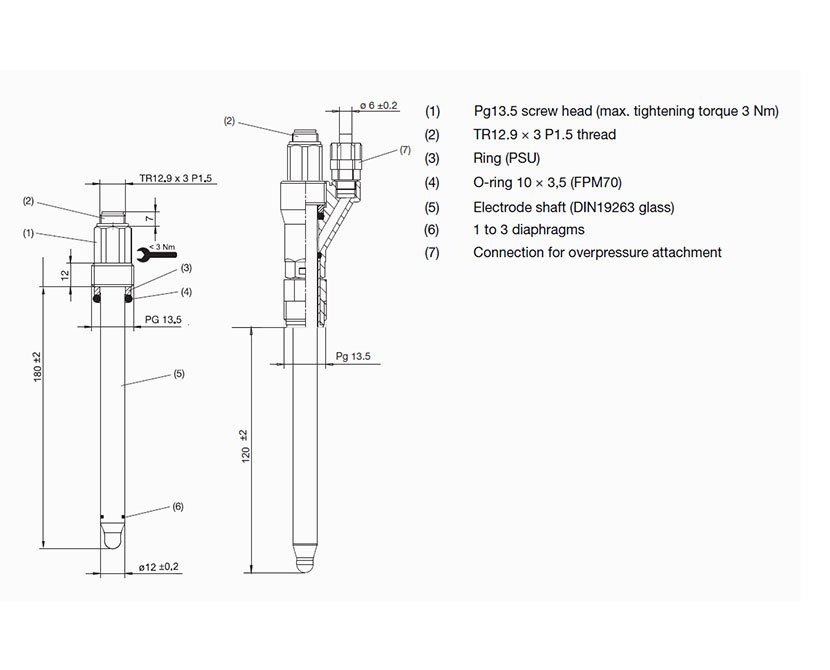

ph-02-dimensions
Specification Sheet
pH Sensor AquaSense PH-02
Application Pure & Ultra-pure water treatment applications
Construction Liquid Junction Triple Ceramic Junction
Type 12mm Diameter Glass Body Combination Electrode
Reference Ag/AgCl in cartridge type conduction system with optional refillable KCL design
Electrolyte Liquid KCL Electrolyte
Measurement Range pH 0 to 14 pH
Temperature 0 to 80 °C
Temperature Sensor PT1000
Process Range Temperature 0 to 135 °C
Pressure 6 Bar
Process Connection PG13.5 Free Turning Cap
Dimensions Diameter 12mm
Length 120mm
Protection IP 66 and IP67
Application
  • Very low conductivity Media
  • Electroplating processes, PCB production
  • Boiler feed water
  • RO Water & Water treatment
Download
AquaSense PH-02_Datasheet
