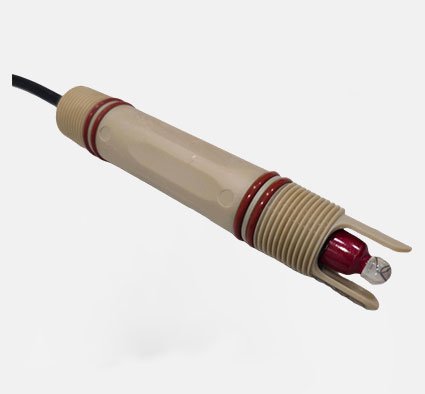

ph-03

Unique Features

  • Large Non-porous, Ion-conductive polymer junction.
  • Temperature Range: 0 to 100 Degree Celsius
  • Integrated Temperature RTD
  • Integrated Shielded Low Noise Cable 5/10M
  • Optional Liquid Earth
  • Process Connection: 2 x 3/4" NPT Male Threads

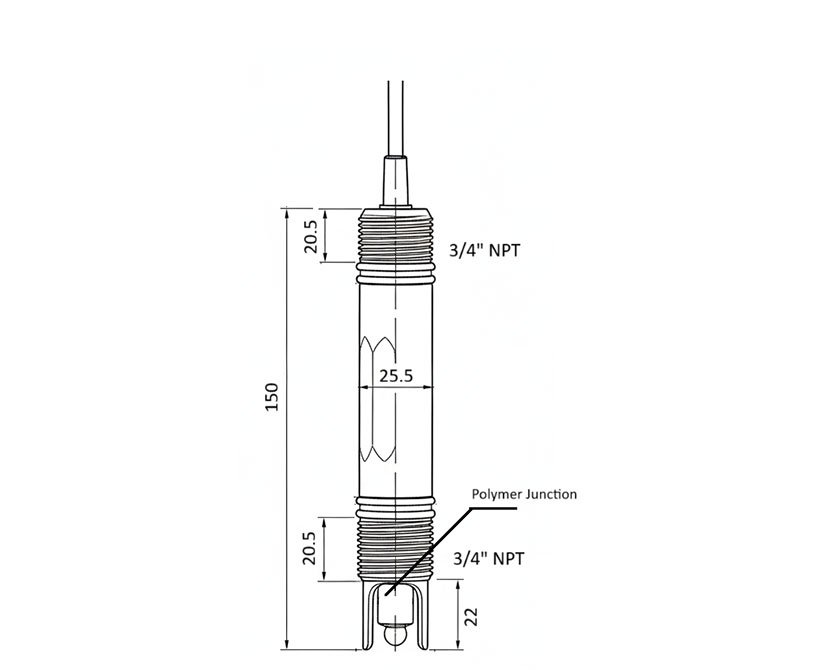

ph-03-dimensions
Specification Sheet
pH/ORP Sensor ChemSense PH/RX-05
Application Demanding and harsh process chemicals, effluent and wastewater treatment
Construction Liquid Junction Non-porous Ion Conductive Polymer Junction
Type Ryton Body Combination Electrode
Reference Ag/AgCl in pressure-compensated chamber
Electrolyte Liquid KCl electrolyte
Measurement Range pH 0 to 14 pH
Temperature Sensor PT100/PT1000
Process Range Temperature 0 to 100 °C
Pressure 10 Bar
Process Connection NPT 3/4" Male Thread
Cable Connector Integrated Coaxial Cable 5M/10M
Application
  • Harsh industrial chemical processes
  • Scrubber
  • Wastewater & Effluent Treatment
  • Powerplant, Petrochemicals, Sugar Industry
Download
ChemSense PH_RX-05_Datasheet
