Unique Features

  • High-quality zirconium dioxide diaphragm with SIP/CIP capability
  • Certified biocompatibility according to EN ISO 10993-5
  • Designed for use at a continually high process temperature of up to max. 135 °C (6 bar)

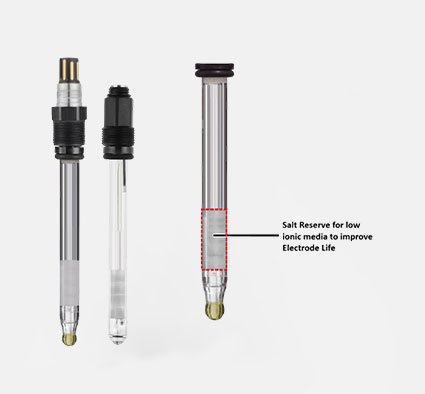

  • With salt reserve to increase service life
ph-01-dimensions
Specification Sheet
pH/ORP Sensor FermSense PH/RX-01
Application Hygienic processes - Fermenters, Bio-reactors, Dairy, Beverages and Food
Construction Liquid Junction Ceramic Junction
Type 12mm Diameter Glass Body Combination Electrode
Reference Ag/AgCl in pressure-compensated system with salt reserves
Electrolyte High density gel electrolyte
Measurement Range pH 0 to 14 pH
REDOX +/- 1500 mV
Temperature Sensor PT1000
Process Range Temperature 0 to 135 °C (Steam Sterilizable)
Pressure 6 Bar
Glass Membrane High temperature glass membrane Steam Sterilizable
REDOX Membrane Platinum tip
Process Connection PG13.5 Free Turning Cap
Cable Connector Variopin Head OR N Screw S8 Head
Dimensions Diameter 12mm
Length 120mm / 225mm / 325mm / 425mm
Protection IP 66 and IP67
Application
  • Fermenters, Bio-reactors
  • Dairy & Beverages
  • Food processing
  • Condensate, Cooling water
