SmartDip 401M is a retractable electrode housing with pneumatically operated drive Unit. This metal body model can be implemented in harsh chemical applications through flange mounting on reactor’s side nozzle for in-situ measurement or on aT connection in pipe line for in-line measurement.The drive unit inserts the measurement sensor into the reaction mass and retractsback to the flushing chamber for cleaning and storage in stand by condition.
SmartDip 405M is a retractable electrode housing with pneumatically operated drive Unit. This metal body model can be implemented in harsh chemical applications through flange mounting on reactor’s side nozzle for in-situ measurement. The drive unit inserts the measurement sensor into the reaction mass and retracts back to the flushing chamber for cleaning and storage in stand by condition.SmartDip 405M-Ex is available with extended immersion length.
SmartDip 450M is a pneumatically retractable electrode housing with long immersion length up to 250mm from mounting flange. This metal body model can be implemented in different chemical applications including tanks, vessels and reactors for In-situ measurements of parameters such as pH/ORP, Conductivity and Dissolved Oxygen. SmartDip 450M has a ball valve the most reliable and widely accepted isolating equipment for isolation in the service position. The user-friendly design makes it much easier to remove the sensor from the housing for calibration.

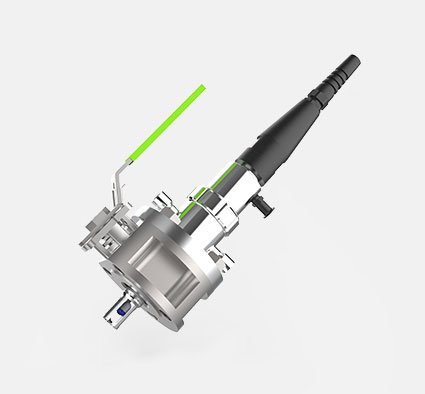

SmartDip 250M is a manually retractable electrode housing with long immersion length up to 350mm from mounting flange. This metal body model can be implemented in different chemical applications including tanks, vessels and reactors for In-situ measurements of parameters such as pH/ORP, Conductivity and Dissolved Oxygen. SmartDip 250M has a ball valve the most reliable and widely accepted isolating equipment for isolation in the service position. The user-friendly design makes it much easier to remove the sensor from the housing for calibration.
SmartDip 110M is a staticelectrode housing with standard ¾” NPT male threads for process connection. This metal body model can be implemented in chemical vessels, reactors and inline applications through NPT nozzle or Dip pipe assembly.1” NPT version is available in SmartDip 115M model.
SmartDip 110P is a static electrode housing with standard ¾” NPT male threads for process connection. This plastic body model can be implemented in chemical vessels, reactors and inline applications through NPT nozzle or Dip pipe assembly. 1” NPT version is available in SmartDip 115P model.
SmartFlow Assembly is a flow through sensor mounting assembly for direct mounting of process sensor such as pH/ORP Electrodes for inline measurement application. It is made out of non-corrosive high-quality thermo-plastic PPH material. This model is designed to ensures that the incoming flow is not hitting the sensor tip directlyto reduce erosion and minimize premature failure. The design also ensures minimum level so that the sensor tip is always kept wetted.
T-fittings are custom built flow through sensor mounting assembly for direct mounting of process sensor such as pH/ORP Electrodes, conductivity sensors etcetera for inline measurement application.For pH electrode mounting the sensor holder of T-Fitting can be designed for installation of static fittings.Various Retractable electrode housing can also be installed on the T-Fitting according to process requirement. Customer can choose between plain SS316 fitting or PTFE lined fitting. It can be customized for installation of Flange, Female NPT Nozzle, TricloverSocket or G1-1/4” Ingold Socket for the mounting of static fittingor retractable electrode housing.
Dynamic Process Equipment provides various automation solutions for liquid process analytics and process control. Control panels for the operation of pneumatically retractable electrode housings are available for safe areaand for hazardous area application.
This non-metallic,well-designed accessory is used as a sensor cap to guard the cable connector of the sensors such as VP-6, S8 and K9 connectors used with pH Electrodes and DO sensors.
