Unique Features

  • Highly accurate and maintenance free fluorecence quenching measurement method
  • 316L Stainless Steel body sterilizable sensor
  • Ra 0.4μm Surface Roughness of Wetted Parts
  • Silicone, EPDM (FDA approved) O-Ring
ph-01-dimensions
Specification Sheet

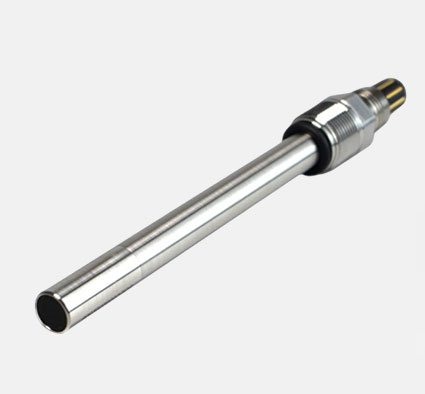

Dissolved Oxygen Optical Sensor FermSense DO-O
Application Bio-pharmaceutical, Life Science & Fermentation
Type Wide Range Trace Range
Optical sensor and electro-optical module in one probe
Output RS-485 MODBUS RTU
Cable Connector VP8
O2 Range Concentration 0.0 to 22.5 mg/l (45.0 mg/l Max) 0 to 2 mg/l (4.5 mg/l Max)
Saturation 0 to 50% (100% Max) 0 to 5% (10% Max)
Minimum 0.015 mg/l (20 ppb) 0.5 ppb
Steam Sterilizable Recommended: + 121 °C, 30 min
Temperature Sensor NTC
Process Range Temperature 0 to 90 °C Max ( 0 to 50 °C Optimal)
Pressure 12 Bar
Response Time < 30 s

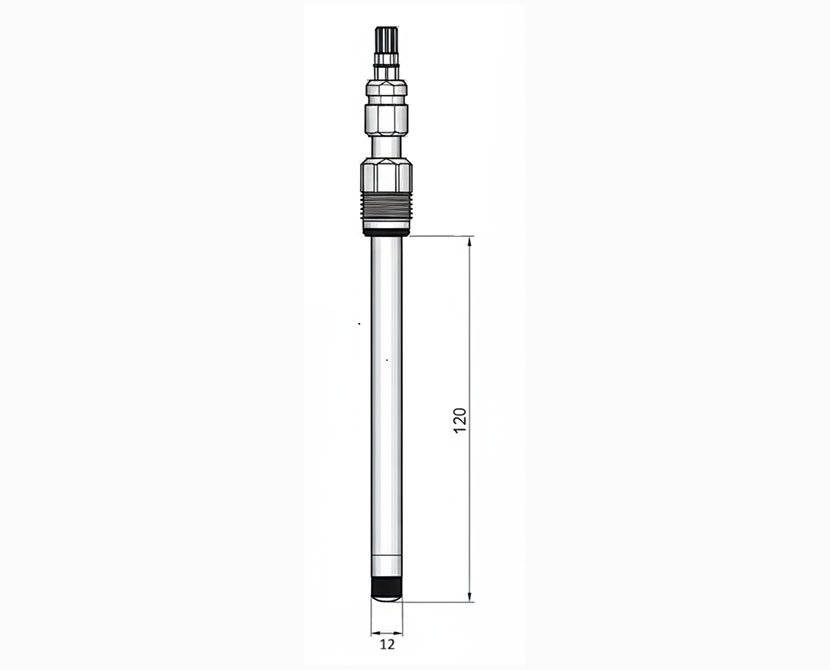

Dimensions Surface Ra < 0.4 µm (N5)
Diameter 12 mm
Length 120, 225mm
Connector PG13.5
Application
  • Fermenters, Bio-reactors
  • Dairy, Brewery & Beverages
  • Boiler Feed Water.
Download
FermSense DO-O_Datasheet
