ph-01

Unique Features

  • Highly accurate and maintenance free fluorecence quenching measurement method
  • 316L Stainless Steel body sterilizable sensor
  • Integrated 10M long Cable
  • Silicone, EPDM (FDA approved) O-Ring

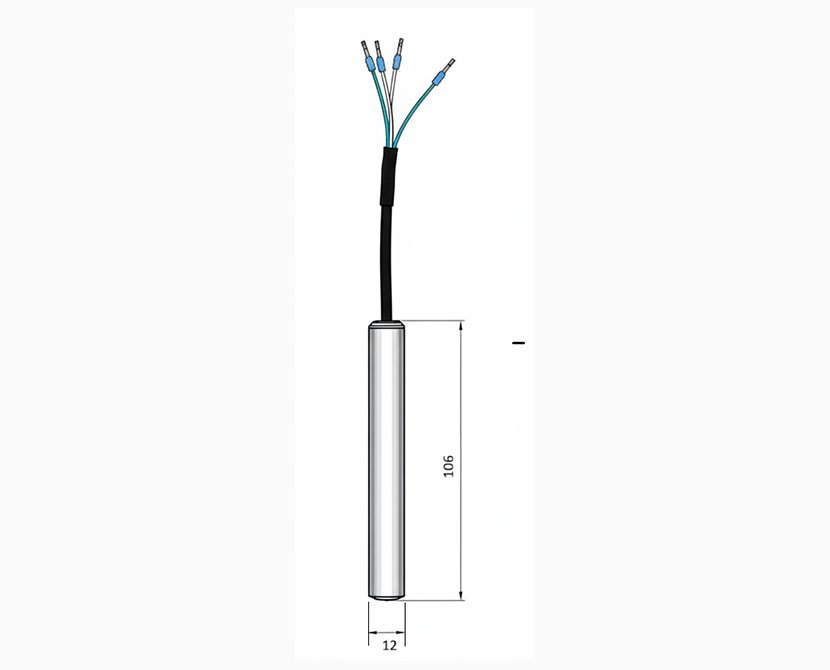

ph-01-dimensions
Specification Sheet
Dissolved Oxygen Optical Sensor AquaSense DO-O
Application Waste water, Effluent Treatment Processes
Type Optical sensor type PSt3 and electro-optical module in one probe
Output RS-485 MODBUS RTU
O2 Range Concentration 0.0 to 45.0 mg/l
Saturation 0 to 100%
Temperature Sensor NTC
Process Range Temperature 0 to 70 °C (Max)
Pressure 3 Bar
Response Time < 30 s
Cable Connector Integrated 10M Cable
Dimensions Diameter 12 mm
Length 106 mm
Application
  • Wastewater & Effluent Treatment
  • Aquaculture, Fish Pond
Download
AquaSense DO-O_Datasheet
