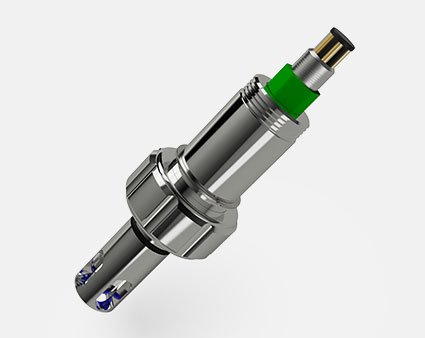

120M

About Product

  • Impeccable machine finished body with MOC SS 316L
  • Designed for sensor tip protection against abrasion and damage
  • Various sealing material available such as EPDM, VITON, KALREZ.
  • Process Connection: G1-1/4” Ingold Cap
  • Immersion length: 70mm
  • O-ring position: 28mm
  • Sensor Specification: 120mm ø12 PG13.5 Sensor
120M-dimensions
Specification Sheet
Model 120M
Pressure 0 to 10 Bar
Process Temperature up to 140 °C
pH/DO Sensor Specs 120mm ø12 PG13.5
MOC SS 316L
Seals EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection G1-1/4" Ingold Cap
Surface Finish Ra Value <0.2
Immersion Length 70 mm
O-ring Position 28mm
Ordering Information
SmartDip 120M _Code MOC of Wetted Parts
1 316L
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
Download
SmartDip 120M_Datasheet
